Nikrothal® TE nickel-chromium alloy

Nikrothal® TE is an austenitic nickel-chromium alloy developed as a replacement for Nikrothal® 80 in tubular element applications. Nikrothal® TE has a nickel content of 66%, compared to 78% for Nikrothal® 80. This gives a significant cost advantage, without technical disadvantages.

The graph shows the cost advantage for Nikrothal® TE compared to Nikrothal® 80 based on different nickel prices.

    Need to know more?

    Get in touch

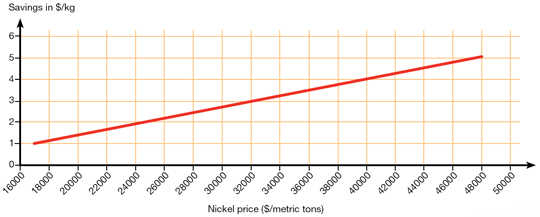

    Savings in $/kg for Nikrothal® TE compared to Nikrothal® 80

    Redesign due to higher resistivity

    Due to the higher resistivity of Nikrothal® TE the elements need to be redesigned. There are two alternatives for redesign:

    1. Keep the same wire dimension

    • Use approximately 10% shorter wire length
    • Higher surface load on the wire – provides higher temperature

    2. Keep the same wire length

    • Use slightly (approx. 5%) larger wire diameter
    • Lower surface load than for Nikrothal® 80 – means lower temperature and results in longer life

    Additional cost savings

    Additional cost savings can be made on Nikrothal® TE compared to Nikrothal® 80 facilitated by a weight reduction, because of 1–2% lower density of Nikrothal TE.

    By using Nikrothal® TE the total savings compared to Nikrothal® 80 will be at least 10% or more depending on the application.

    Material datasheet for Nikrothal® TE
