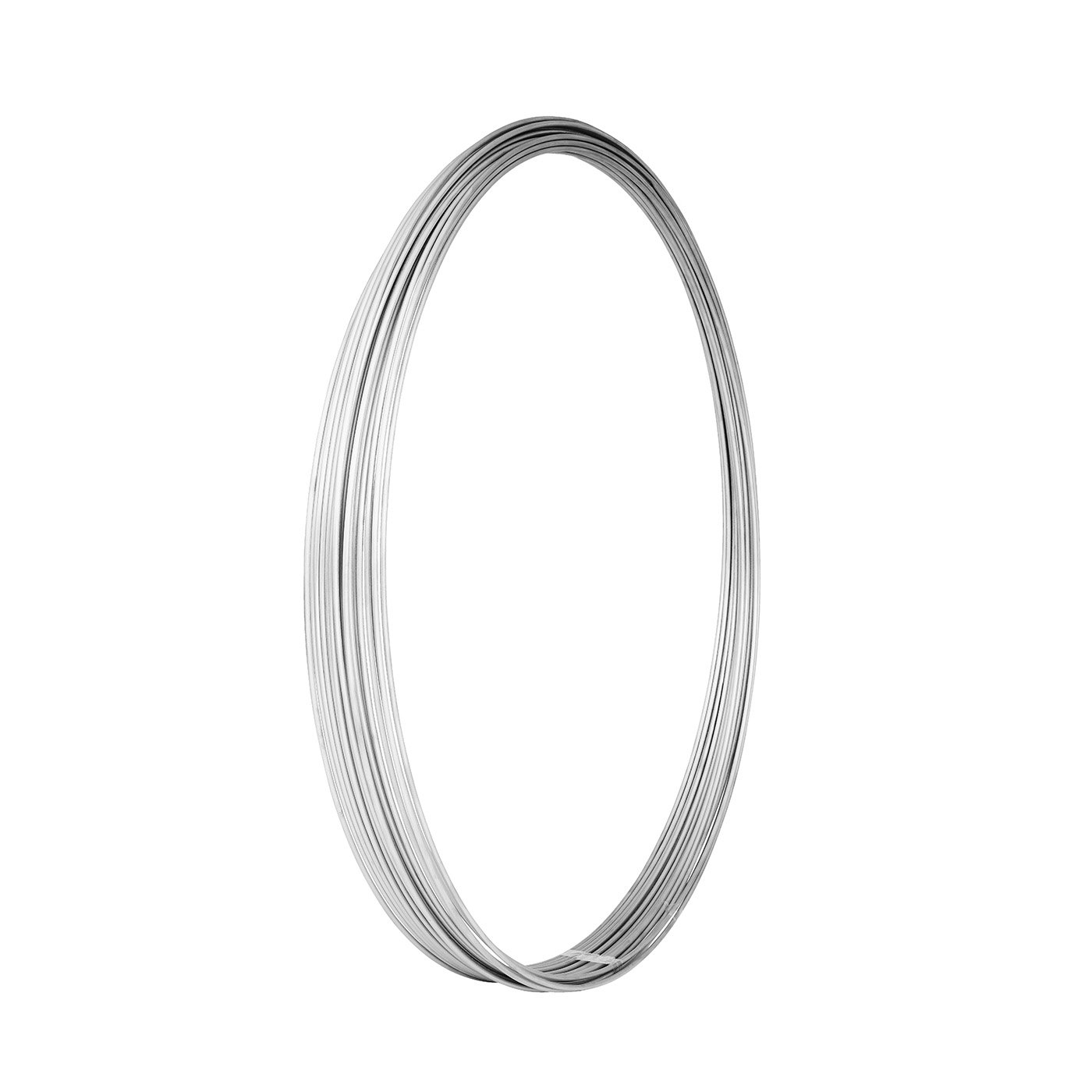

Resistance heating wire and conductive wire

Wire in a wide range of alloys optimized for use in, for example, resistance, high-temperature and conductive applications.

Round and flat resistance heating wire and resistance wire with bright annealed or oxidized surface, depending on size. Round resistance wire sizes up to 0.40 mm (0.0157 inch) are available with insulation and coating.

Need to know more?

Get in touch

Information

Product forms available are:

  • Round wire
  • Flat wire (ribbon)
  • Shaped wire

The wire is supplied on spools, in coils, in pail pack or as straightened lengths and available with or without coating.

Type of alloy Description
Kanthal® and Alkrothal® FeCrAl alloys* High-resistivity iron-chromium-aluminium alloys for use up to 1,400ºC (2,550ºF).
Nikrothal® NiCr alloys High-resistivity nickel-chromium alloys for use up to 1,250ºC (2,280ºF).
Nifethal® NiFe alloys Low-resistivity nickel-iron alloys with high temperature coefficient of resistance for use up to 600ºC (1,110ºF).
Cuprothal® CuNi alloys Medium- and low-resistivity copper-nickel alloys for use up to 600ºC (1,110ºF).

Characteristics

Product forms and size range

Round wire

0.010-12 mm (0.00039-0.472 inch)
Other sizes are available on request.

Ribbon (flat wire)

Thickness: 0.023-0.8 mm (0.0009-0.031 inch)
Width: 0.038-4 mm (0.0015-0.157 inch)
Width/thickness ratio max 40, depending on alloy and tolerance
Other sizes are available on request.

Resistance tolerance

Standard resistance tolerance for wire is listed in the following table. Wire can be supplied to closer tolerance on request.
The data is valid at 20°C (68°F).

Wire size Ø mm (inch) Resistance tolerance %
<0.127 (0.005) +/- 8
>0.127 (0.005) +/- 5

Delivery forms

Kanthal® resistance wire is delivered on spools, in coils, in pail pack or as straightened lengths.

Insulation and coating

The Kanthal® program includes a wide range of insulation coatings, bondable coatings and metallic coatings such as electroplating and anodizing. All coatings are available in various colors.

Marking

Each spool/package of wire is supplied with a label or tag showing alloy type, nominal size, tara and net weight, resistance W/m (W/ft), charge number and a reference number.

Stock program

We have a number of frequently used products in stock. Please contact us for details.

List of Alloys

Kanthal® grade Max. continuous operating temp.
ºC (ºF)		 Resistivity at 20ºC (68ºF)
Ω mm2/m (Ω/cmf)
FeCrAl alloys
Kanthal® APM (wire) 1,425 (2,600) 1.45 (872)
Kanthal® A-1 (wire) 1,400 (2,550) 1.45 (872)
Kanthal® A (wire) 1,350 (2,460) 1.39 (836)
Kanthal® A (ribbon) 1,350 (2,460) 1.39 (836)
Kanthal® AF (wire) 1,300 (2,370) 1.39 (836)
Kanthal® AE (wire) 1,300 (2,370) 1.39 (836)
Kanthal® D (wire) 1,300 (2,370) 1.35 (812)
Kanthal® D (ribbon) 1,300 (2,370) 1.35 (812)
Kanthal® DT (ribbon) 1,300 (2,370) 1.37 (823)
Kanthal® LT 1,100 (2,010) 1.23 (740)
Alkrothal® 14 (wire) 1,100 (2,010) 1.25 (744)
NiCr alloys
Nikrothal® TE (wire) 1,200 (2,190) 1.19 (716)
Nikrothal® 80 (wire) 1,200 (2,190) 1.09 (656)
Nikrothal® 80 (ribbon) 1,200 (2,190) 1.09 (656)
Nikrothal® 70 (wire) 1,250 (2,280) 1.18 (709)
Nikrothal® 60 (wire) 1,150 (2,100) 1.11 (668)
Nikrothal® 60 (ribbon) 1,150 (2,100) 1.11 (668)
Nikrothal® 40 (wire) 1,100 (2,010) 1.04 (626)
Nikrothal® 40 (ribbon) 1,100 (2,010) 1.04 (626)
Nikrothal® 30 (wire) 1,050 (1,920) 1.03 (620)
Nikrothal® 20 (wire) 1,050 (1,920) 0.95 (572)
Nikrothal® LX (wire) 300 (570) 1.33 (800)
NiFe alloys
Nifethal® 70 (wire) 600 (1,110) 0.20 (120)
Nifethal® 52 (wire) 600 (1,110) 0.37 (220)
Nifethal® 42 (wire) 600 (1,110) 0.63 (379)
CuNi alloys
Cuprothal® 49 (wire) 600 (1,110) 0.49 (295)
Cuprothal® 30 (wire) 400 (750) 0.30 (180)
Cuprothal® 15 (wire) 400 (750) 0.15 (90)
Cuprothal® 10 (wire) 300 (570) 0.10 (60)
Cuprothal® 5 (wire) 300 (570) 0.05 (30)
Manganina 43 (wire) - 0.43 (259)
